We offer and manufacture highly custom-engineered die heads guaranteeing that no-stagnation of polymer and smooth polymer flow and the matching connection of upstream equipment including Extruders, Screen-changers, Gear pumps, Static mixers etc. and down stream pelletizing machine.

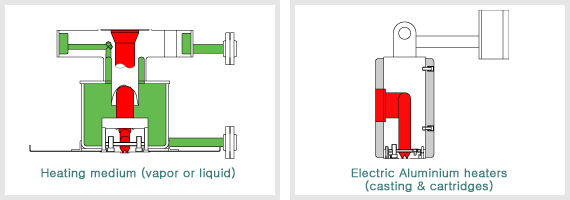

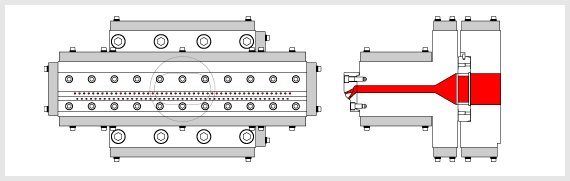

Design pressure : 250kg/㎠G Design temperature : 320℃ Pressure drop inside of Die head : can be suggested with customer's shear rate curve Connection for Thermocouples and instrument (optional) Design of nozzle plate : Single or dual row stranding Ex) Typical nozzle design for SAN Pelletizer (HJCV9) in 10 ton/hr production Heating of Die head : available with

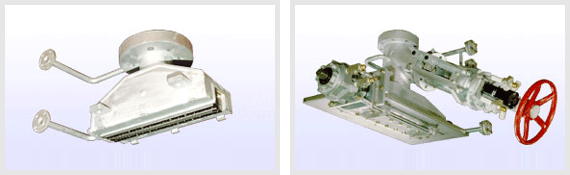

HJDH for continuous process (HTM design) :

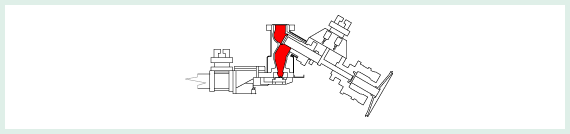

HJPV for batch process :
Die head for extrusion process For a single and twin screw extruder
