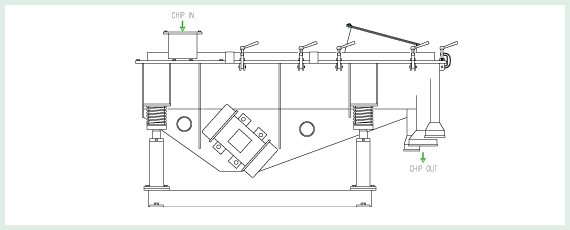

As the last equipment in pelletizing field, vibrating screen separates off-spec. pellets. Generally using two screen decks and having three outlet nozzles for oversized, normal, powder, our vibrating screen proves its quality and reliability in many applications combined with our pelletizer.



Double deck screen area
Three separation outlets : oversized, normal, powder
Exchangeable and customized screens according
to pellet size
Screen material : perforated stainless steel
Special vibration motors
Classifying capacity varied by adjustment of
unbalance in motor
Cover and body made of stainless steel with
inspection window


M/C type
Specifications
HJVS-2
HJVS-4
HJVS-6
HJVS-9
HJVS-12
HJVS-15
Throughput (ton/hr)
Max. 2
Max. 4
Max. 7
Max. 9
Max. 12
Max. 15
Drives (kW) X 2
0.25
0.35
0.55
0.85
1.6
2.2
